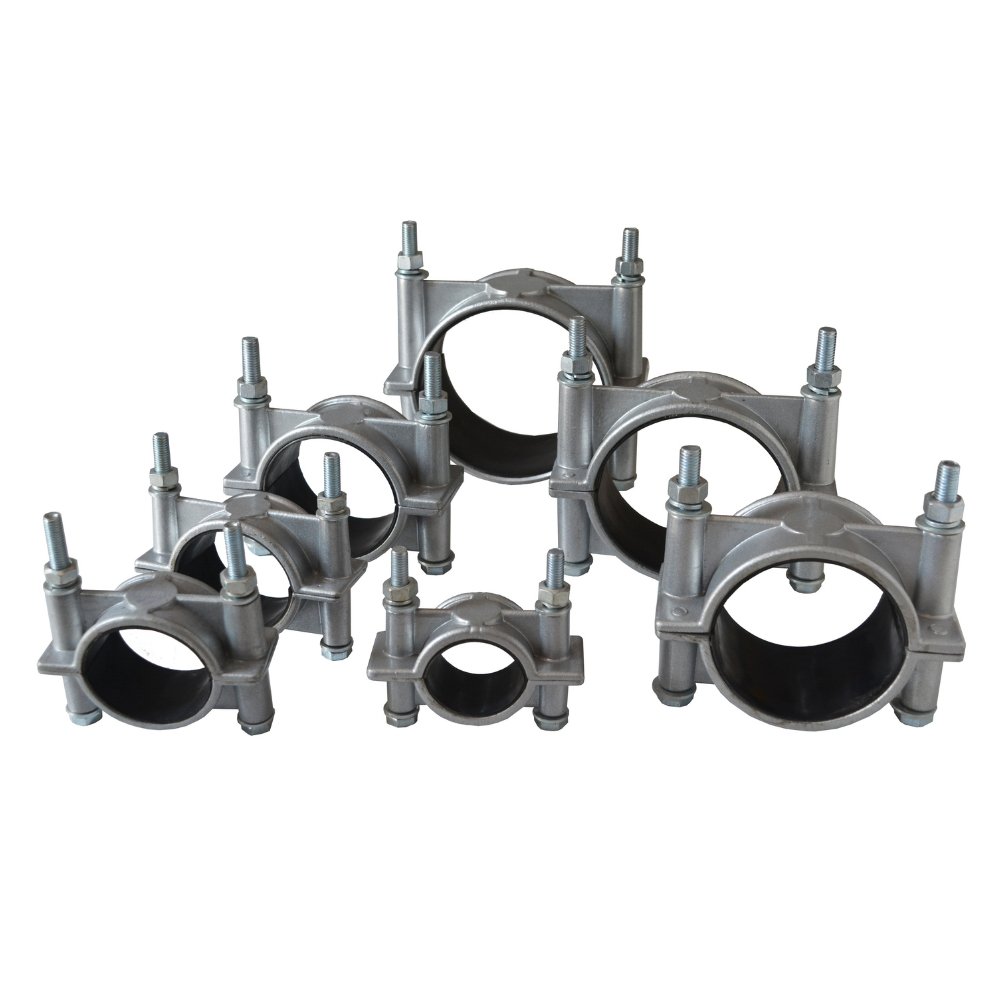

01. Material Used: LM6 Aluminium Alloy.
02. Operating Temperature: -60⁰C to 100⁰C.
03. Two-piece, two fixing designs.
04. Can be double stacked on common fixing.
05. Suitable for 48 to 140mm cable diameter.
06. Designed for all type of cables.
07. Coating: Epoxy.
08. Sizes: 14
09. Recommended for current rating above 1KVA.
10. Provided with rubber liners.
11. Colour: Silver
|

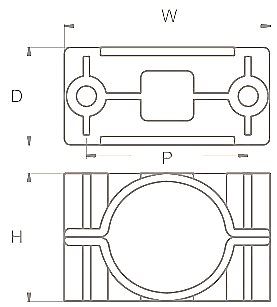

Model |
CABLE DIA (A) |
CLEAT DIMENSIONS (in mm) |
Fixings |
||||
|
MIN (in mm) |
MAX (in mm) |
W |
H |
D |
P |
||
|
SME-ATC-01 |
48 |
55 |
119 |
64 |
45 |
84 |
M10 |
|
SME-ATC-02 |
51 |
57 |
96 |
64 |
59 |
76 |
M10 |
|
SME-ATC-03 |
57 |
64 |
96 |
75 |
49 |
76 |
M10 |
|
SME-ATC-04 |
64 |
70 |
96 |
84 |
64 |
118 |
M10 |
|
SME-ATC-05 |
70 |
76 |
134 |
90 |
64 |
114 |
M10 |
|
SME-ATC-06 |
76 |
83 |
142 |
102 |
64 |
114 |
M12 |
|
SME-ATC-07 |
83 |
89 |
154 |
114 |
64 |
114 |
M12 |
|
SME-ATC-08 |
89 |
95 |
154 |
114 |
64 |
114 |
M12 |
|
SME-ATC-09 |
95 |
101 |
154 |
120 |
76 |
126 |
M12 |
|
SME-ATC-10 |
101 |
108 |
169 |
134 |
76 |
140 |
M12 |
|
SME-ATC-11 |
108 |
114 |
169 |
140 |
76 |
149 |
M12 |
|
SME-ATC-12 |
115 |
125 |
185 |
131 |
63 |
156 |
M12 |
|
SME-ATC-13 |
125 |
135 |
190 |
140 |
70 |
160 |
M12 |
|
SME-ATC-14 |
135 |
140 |
195 |
155 |
85 |
165 |
M12 |
Standard tolerance +- 2% applied
