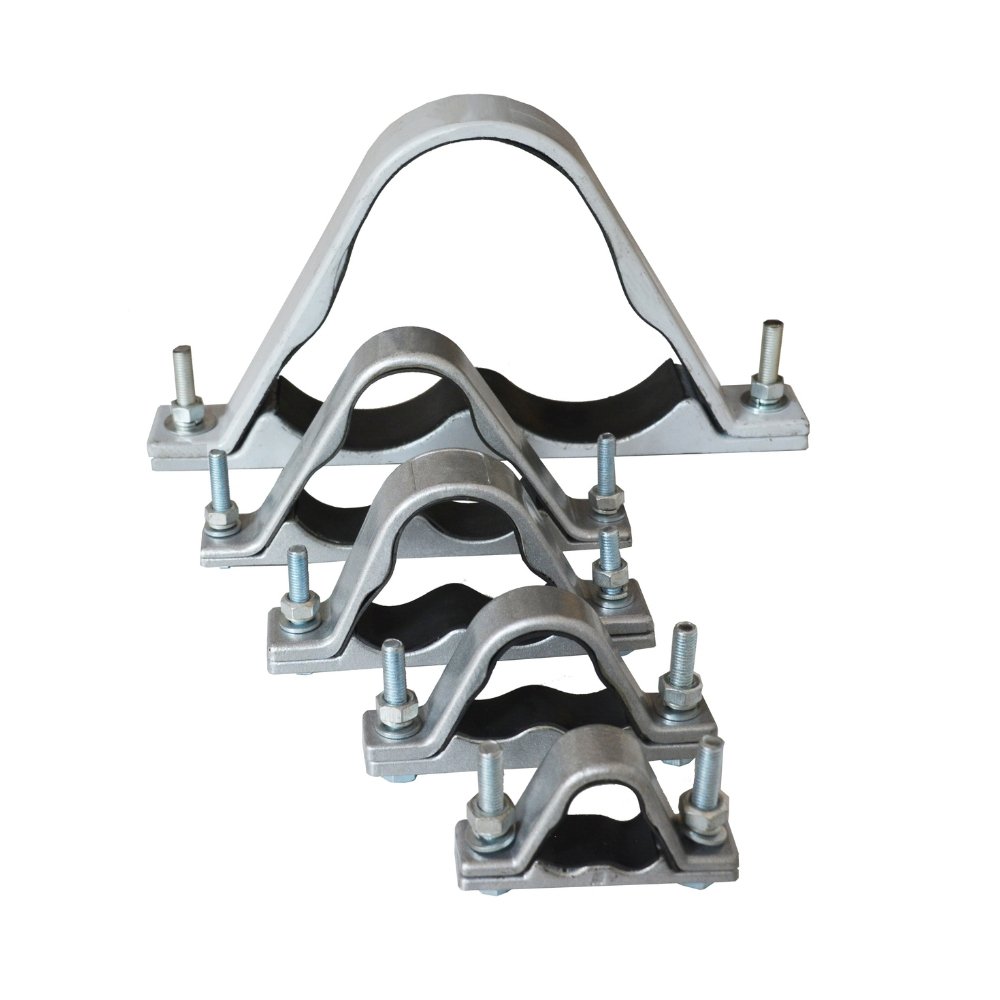

01. Material Used: LM6 Aluminium Alloy.
02. Operating Temperature: -60⁰C to 90⁰C.
03. Suitable for 15mm to 155mm cable diameter.
04. Suitable for LV,MV, HV cables.
05. Provided with rubber liners.
06. Coating: Epoxy
07. Two piece, two bolt fixing design.
08. Sizes: 08.
09. Colour: Silver.
10. Recommended above 1KVA.
SModel | CABLE DIA | Cleat dimensions | |||
MIN (in mm) | MAX (in mm) | A | B | C | |
SME-ATFC(SP)-01 | 15 | 30 | 108 | 30 | 80 |
SME-ATFC(SP)-02 | 30 | 45 | 151 | 30 | 120 |
SME-ATFC(SP)-03 | 45 | 60 | 185 | 40 | 151 |
SME-ATFC(SP)-04 | 60 | 75 | 226 | 40 | 193 |
SME-ATFC(SP)-05 | 75 | 90 | 267 | 40 | 235 |
SME-ATFC(SP)-06 | 90 | 107 | 319 | 50 | 282 |
SME-ATFC(SP)-07 | 107 | 129 | 390 | 57 | 352 |
SME-ATFC(SP)-08 | 129 | 155 | 455 | 57 | 397 |
Standard tolerance + – 2% applied
